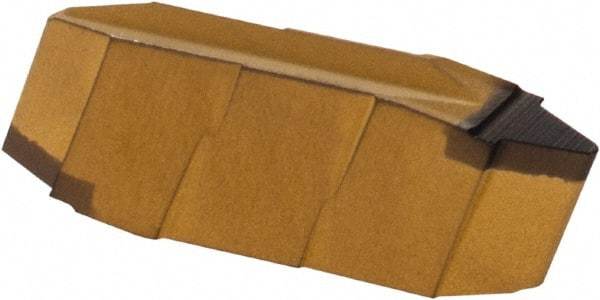

Iscar - 32341GPV Grade IC8250, 2.8mm Cutting Width Carbide Grooving Insert - 2.21mm Max Depth of Cut, Neutral, 0.32mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 43666536
Brand: Iscar
Model #: 6405257
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GPV |
| Insert Size | 32341 |
| Material | Carbide |
| Cutting Width (mm) | 2.80 |
| Cutting Width (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (mm) | 2.21 |
| Maximum Depth of Cut (Decimal Inch) | 0.0870 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.32 |
| Corner Radius (Decimal Inch) | 0.0126 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Rake Angle | 5 |
