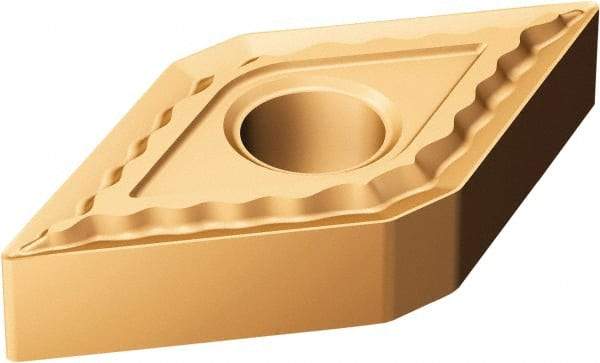

Sandvik Coromant - DNMG332 QM Grade 1115 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 55° Parallelogram, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 43642834
Brand: Sandvik Coromant
Model #: 5731073
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 332 |
| Material | Carbide |
| Length (mm) | 10.83 |
| Length (Decimal Inch) | 0.4263 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | QM |
| Insert Length (Decimal Inch) | 0.4263 |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4578 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1875 |
| ISO Number | DNMG 11 04 08-QM 1115 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DNMG 11 04 08-QM 1115 |
| Primary Workpiece Material | M; S |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 10.83 |
| Maximum Depth of Cut (Decimal Inch) | 0.4263 |
| Insert Holding Method | Pin & Clamp |
| Cutting Width (mm) | 10.83 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
