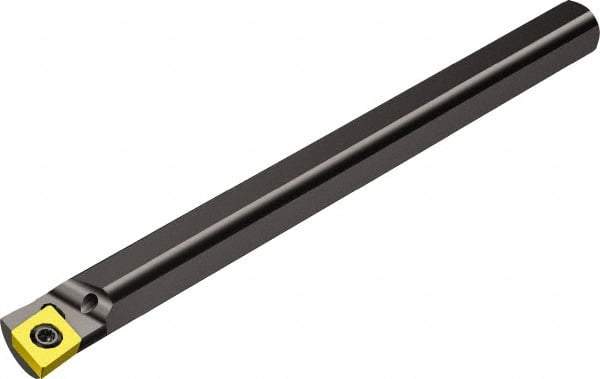

Sandvik Coromant - 25mm Min Bore Diam, 250mm OAL, 20mm Shank Diam, A..SCLCR/L Indexable Boring Bar - Screw-On Holding Method
Item #: 43607068
Brand: Sandvik Coromant
Model #: 5721398
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..SCLCR/L |
| Series | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw-On |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CCMT 09 T3 08 |
| Toolholder Material | Steel |
