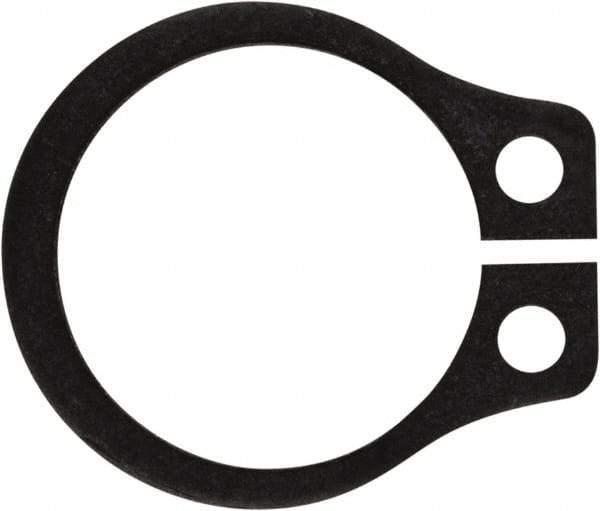

Rotor Clip - 0.321" Groove Diam, 11/32" Shaft Diam, Phosphate Steel, Snap External Retaining Rings - 0.029" Groove Width, 0.011" Groove Depth, 0.025" Ring Thickness, Grade 1060-1090 - Benchmark Tooling

Rotor Clip - 0.321" Groove Diam, 11/32" Shaft Diam, Phosphate Steel, Snap External Retaining Rings - 0.029" Groove Width, 0.011" Groove Depth, 0.025" Ring Thickness, Grade 1060-1090


Item #: 43488196
Brand: Rotor Clip
Model #: SH-34ST PA
Exact Tooling IR#: 04

Features and Benefits

Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Product Specifications
Type Snap
System of Measurement Inch
Shaft Diameter (mm) 8.73
Shaft Diameter (Inch) 11/32
Shaft Diameter (Decimal Inch) 0.3438
Groove Diameter (Decimal Inch) 0.3210
Free Diameter (Decimal Inch) 0.3090
Free Outside Diameter (Decimal Inch) 0.5700
Military Specification Does Not Meet Military Specifications
Material Steel
Finish/Coating Phosphate
Material Grade 1060-1090
Groove Width (Decimal Inch) 0.0290
Groove Depth (Decimal Inch) 0.0110
Ring Thickness (Decimal Inch) 0.0250
Groove Diameter Tolerance (Decimal Inch) -0.0020 to 0.0020
Groove Width Tolerance (Decimal Inch) 0.000 to 0.003
Free Diameter Tolerance (Decimal Inch) -0.005 to 0.002
Ring Thickness Tolerance (Decimal Inch) -0.002 to 0.002
Hardness Rockwell 30N 69.5-73
Fastener Standard SAE 1060-1090; UNS G10600-G10900
$9.21
