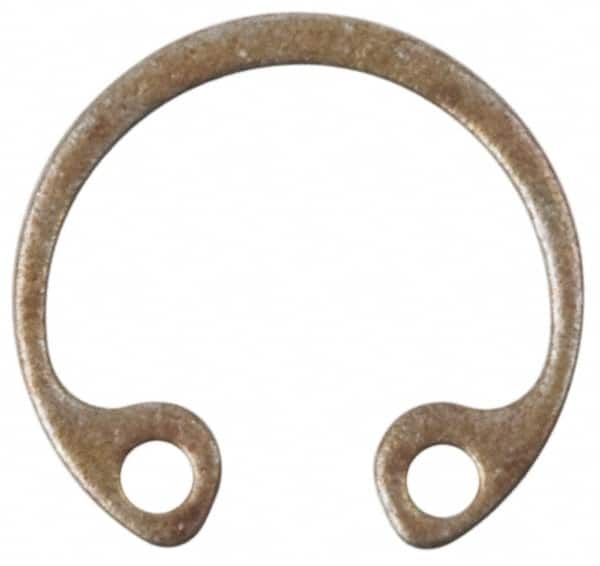

Rotor Clip - 0.035" Thick, Phosphate Finish, Steel Snap Internal Retaining Ring - 0.039" Groove Width, 0.015" Groove Depth, 0.53" Groove Diam, Grade 1060-1090
Item #: 43487586
Brand: Rotor Clip
Model #: HO-50ST PA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1/2 |
| Bore Diameter (Decimal Inch) | 0.5000 |
| Bore Diameter (mm) | 12.70 |
| Groove Diameter (Decimal Inch) | 0.5300 |
| Groove Width (Decimal Inch) | 0.0390 |
| Free Outside Diameter (Decimal Inch) | 0.5480 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0350 |
| Material Grade | 1060-1090 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0150 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0020 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.010 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 2010 (Ring Safety Factor); 510 (Groove Safety Factor) |
| Hardness | Rockwell 30N 69.5-73 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
