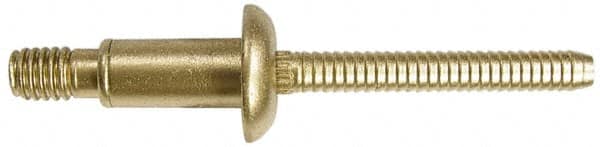

Marson - Button Head Steel Structural Blind Rivet - Steel Mandrel, 0.268" to 0.346" Grip, 0.525" Head Diam, 0.261" to 0.272" Hole Diam, 1/4" Body Diam
Item #: 43473495
Brand: Marson
Model #: MBCP-R8-M7-PKT
Exact Tooling IR#: 04
Features and Benefits
Structural rivets are used in structural, limited-clearance applications. They have high strength properties and good resistance to corrosion and tampering.
Button head fasteners have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Structural |
| Head Type | Button |
| Rivet Material | Steel |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.2680 |
| Maximum Grip (Decimal Inch) | 0.3460 |
| Head Diameter (Decimal Inch) | 0.5250 |
| Minimum Hole Diameter (Decimal Inch) | 0.2610 |
| Maximum Hole Diameter (Decimal Inch) | 0.2720 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Body Diameter (Inch) | 1/4 |
| Head Height (Decimal Inch) | 0.1220 |
