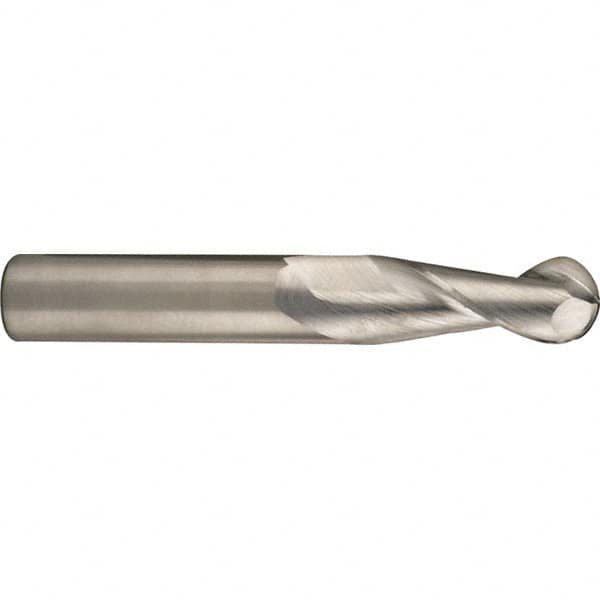

SGS - 20mm Diam, 38mm LOC, 2 Flute Solid Carbide Ball End Mill - TiB2 Finish, Single End, 104mm OAL, 20mm Shank Diam, Spiral Flute
Item #: 43223247
Brand: SGS
Model #: 44607
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium diboride (TiB2) is a corrosion resistant ceramic compound made of titanium and boron. It is commonly used on nonferrous materials including aluminum and magnesium alloys.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 38.00 |
| Length of Cut (Decimal Inch) | 1.4961 |
| Material | Solid Carbide |
| Overall Length (mm) | 104.00 |
| Shank Diameter (mm) | 20.00 |
| Finish/Coating | TiB2 |
| Single or Double End | Single |
| Helix Angle | 35.00 |
| Extended Reach | No |
| Material Grade | Micrograin |
| Mill Diameter Tolerance (mm) | +0.0025/-0.0100 |
| Flute Type | Spiral |
| Undercutting | No |
| Shank Diameter Tolerance (mm) | 0.000/-0.013 |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
