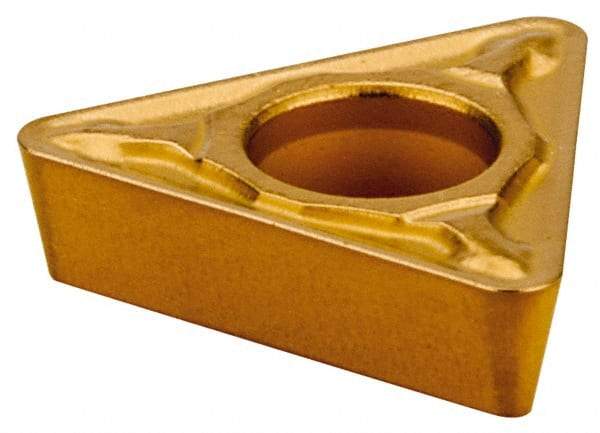

Tungaloy - TPMT21.52 PS Grade T9125 Carbide Turning Insert - TiCN/Al2O3 Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 43172501
Brand: Tungaloy
Model #: 6865421
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | T9125 |
| Coating | TiCN/Al2O3 |
| Material Grade | C6 |
| Chip Breaker | PS |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
