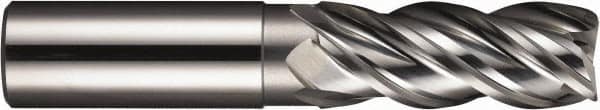

SGS - 1/2" Diam 4 Flute Solid Carbide 0.01" Corner Radius End Mill
Item #: 43169382
Brand: SGS
Model #: 36704
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | Ti-NAMITE-X |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Variable Index | Yes |
| Variable Helix | Yes |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 38 |
| Length Type | Regular |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Corner Radius Tolerance (Decimal Inch) | +0.000/-0.002 |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00043 |
| Extended Reach | No |
