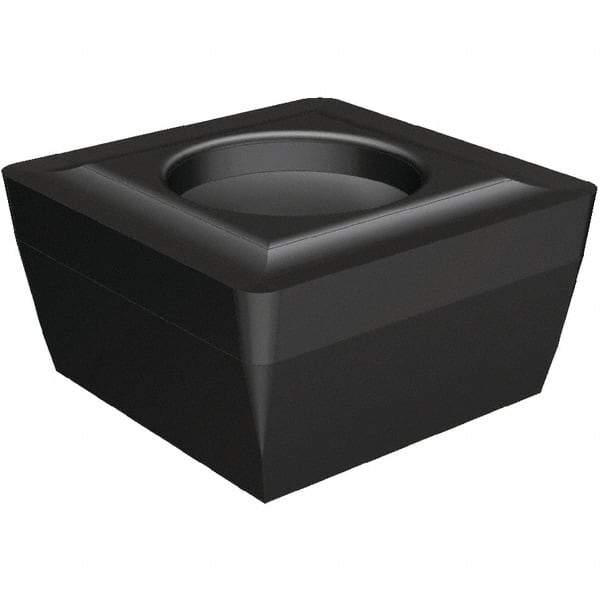

Kennametal - SPGX6 LP Grade KCU25 Carbide Indexable Drill Insert - AlTiN Finish, Square, 1/4" Inscribed Circle
Item #: 43037449
Brand: Kennametal
Model #: 6573320
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Insert Style | SPGX |
| Insert Size | 6 |
| Material | Carbide |
| Manufacturer's Grade | KCU25 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/64 |
| Shape | Square |
| Width (mm) | 6.21 |
| Length (mm) | 6.20 |
| Hole Diameter (mm) | 2.65 |
| Included Angle | 90 |
| Coating | AlTiN |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Chipbreaker | LP |
