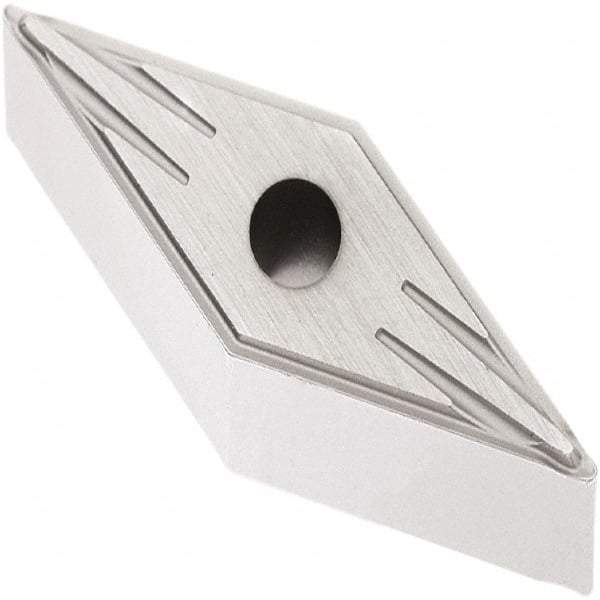

Seco - VNMG330.5 FF2 Grade TP1501 Carbide Turning Insert - Al2O3 Finish, 35° Trigon, 3/8" Inscr Circle, 3/16" Thick, 1/128" Corner Radius
Item #: 43018092
Brand: Seco
Model #: 15669
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 330.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | TP1501 |
| Coating | Al2O3 |
| Chip Breaker | FF2 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Shape | Trigon |
