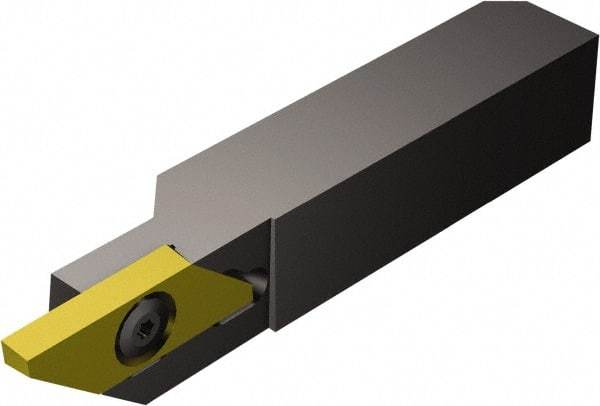

Sandvik Coromant - QS-SMALR/L-X, External, Right Hand, 8.5mm Max Depth of Cut, Indexable Grooving Tool Holder - MACR 3 200-N Insert Compatibility, 12mm Shank Height, 12mm Shank Width, 70mm OAL
Item #: 43003938
Brand: Sandvik Coromant
Model #: 5737952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Maximum Depth of Cut (mm) | 8.50 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QS-SMALR/L-X |
| Insert Compatibility | MACR 3 200-N |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Series | CoroCut XS |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | 3 |
| Maximum Hole Depth (Decimal Inch) | 1.0630 |
| Maximum Bore Depth (Decimal Inch) | 1.0630 |
| igrvh Maximum Bore Depth (mm) | 27.00 |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (mm) | 12.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 27.00 |
| Head Length (Decimal Inch) | 1.0630 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | MACR 3 200-N |
