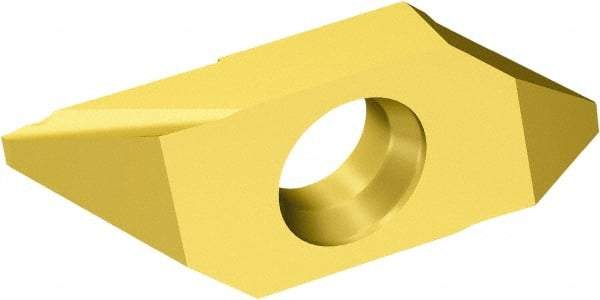

Sandvik Coromant - MABR3020 Grade 1025 Carbide Turning Insert - TiAlN/TiN Finish, Irregular, 1/8" Inscr Circle, 1/8" Thick, 0.2mm Corner Radius
Item #: 42974741
Brand: Sandvik Coromant
Model #: 5733331
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MABR |
| Insert Size | 3020 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.18 |
| Inscribed Circle (Decimal Inch) | 0.1250 |
| Inscribed Circle (Inch) | 1/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Hole Diameter (Decimal Inch) | 0.1250 |
| ISO Number | MABR 3 020 1025 |
| Relief Angle | 6 |
| Coating Process | PVD |
| Manufacturers Catalog Number | MABR 3 020 1025 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | CoroCut XS |
| Insert Holding Method | Screw |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Irregular |
