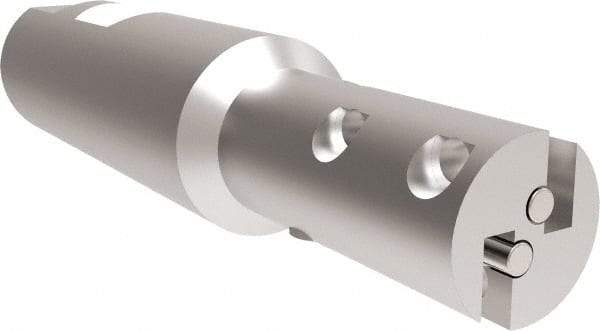

Allied Machine and Engineering - 23.67 (Straight), 27.05 (Tapered)mm Cut Diam, 25mm Shank Diam, Internal/External Indexable Thread Mill - Multiple Insert Styles, 38.1mm Insert Size, Toolholder Style THP, 114.3mm OAL
Item #: 42914499
Brand: Allied Machine and Engineering
Model #: THP-0932-1F150M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 23.67 (Straight); 27.05 (Tapered) |
| Insert Style | TN150K-AP10; TN150K-AP8; TN150K-BSPP11; TN150K-BSPT11; TN150K-FA10; TN150K-FA12; TN150K-FA5; TN150K-FA6; TN150K-FA8; TN150K-M2.0E; TN150K-M2.0I; TN150K-M2.5I; TN150K-M3.0I; TN150K-M3.5I; TN150K-M4.0E; TN150K-M4.0I; TN150K-M4.5E; TN150K-M4.5I; TN150K-M5.0E |
| Insert Size (mm) | 38.10 |
| Insert Size (Decimal Inch) | 1.5000 |
| Toolholder Style | THP |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Pin; Screw |
| Number of Flutes | 1 |
