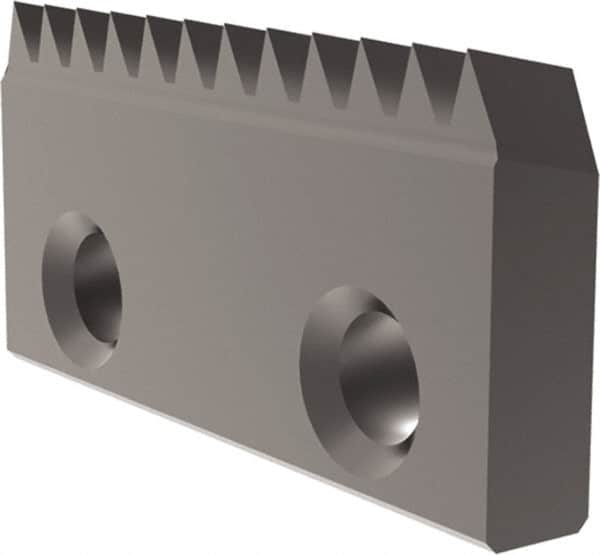

Allied Machine and Engineering - 18 TPI, Internal Thread, UN Standard, TP Grade Thread Mill Insert - Carbide, AM210 Coating
Item #: 42913624
Brand: Allied Machine and Engineering
Model #: TP100K-UN18I
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TP |
| Thread Type | Internal |
| Thread Standard | UN |
| Threads Per Inch | 18 |
| Length (mm) | 25.40 |
| Length (Decimal Inch) | 1.0000 |
| Material | Carbide |
| Coating | AM210 |
| Thickness (mm) | 3.56 |
| Thickness (Decimal Inch) | 0.1400 |
| Conical | No |
