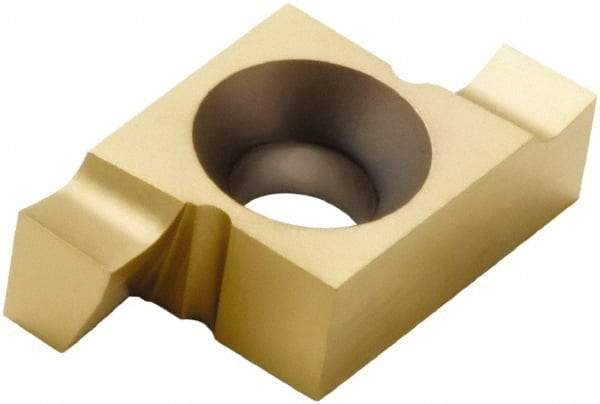

Seco - 2503015X4GK FG Grade CP500, 0.0845987" Cutting Width Carbide Grooving Insert - 6mm Max Depth of Cut, Right Hand, 0.15mm Corner Radius, TiAlN/TiN Finish
Item #: 42855221
Brand: Seco
Model #: 91793
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | X4GK |
| Insert Size | 2503015 |
| Material | Carbide |
| Cutting Width (mm) | 2.15 |
| Cutting Width (Inch) | 0.0846 |
| Cutting Width (Decimal Inch) | 0.0846 |
| Maximum Depth of Cut (mm) | 6.00 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.8020 |
| Lead Angle | 0 |
| Chipbreaker | FG |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Inch) | 0.0059 |
| Coating Process | PVD |
| Overall Length (mm) | 25.00 |
| Series | X4 |
| Overall Width (mm) | 3.10 |
| External Relief Angle | 6 |
