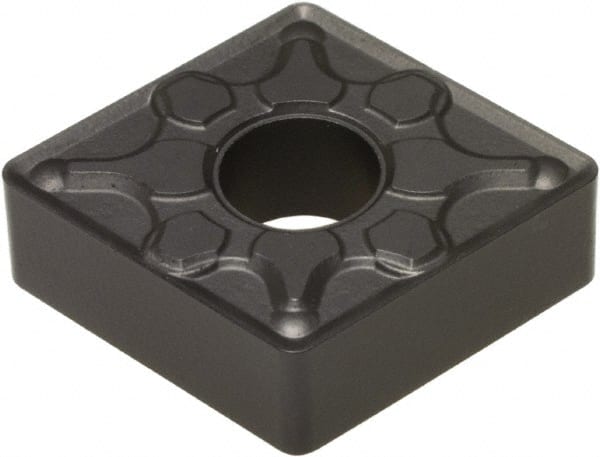

Hertel - CNMG 543-LR HC1250T Carbide Turning Insert
Item #: 42804856
Brand: Hertel
Model #: 1002055
Product Specifications
| Insert Style | CNMG |
| Insert Size | 543 |
| Material | Carbide |
| Length (mm) | 15.88 |
| Length (Decimal Inch) | 0.6250 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | HC1250T |
| Coating | Proprietary |
| Material Grade | HC1250T |
| Chip Breaker | LR |
| Insert Length (Decimal Inch) | 0.6250 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | CNMG 160612-LR |
| Rake | Negative |
| Rake Angle | 6 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG543 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
