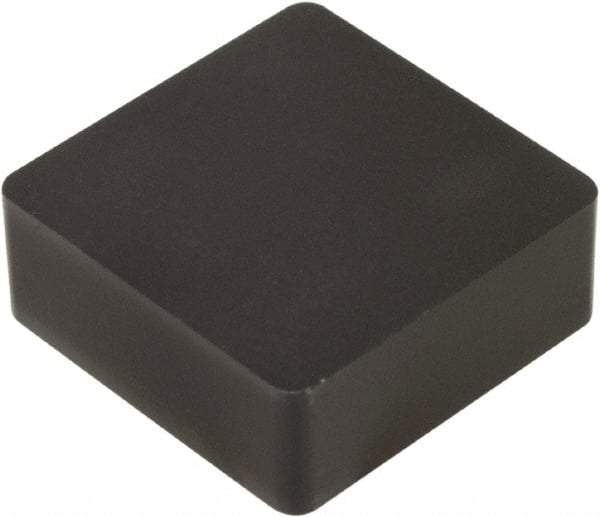

Hertel - SNG433 1 Grade HC1250T Carbide Turning Insert - Proprietary Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 42801373
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNG |
| Insert Size | 433 |
| Material | Carbide |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1900 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | HC1250T |
| Coating | Proprietary |
| Material Grade | HC1250T |
| Chip Breaker | 1 |
| Insert Length (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| ISO Number | SNG433 |
| Rake | Negative |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | SNG433 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Insert Holding Method | Clamp |
| Shape | Square |
