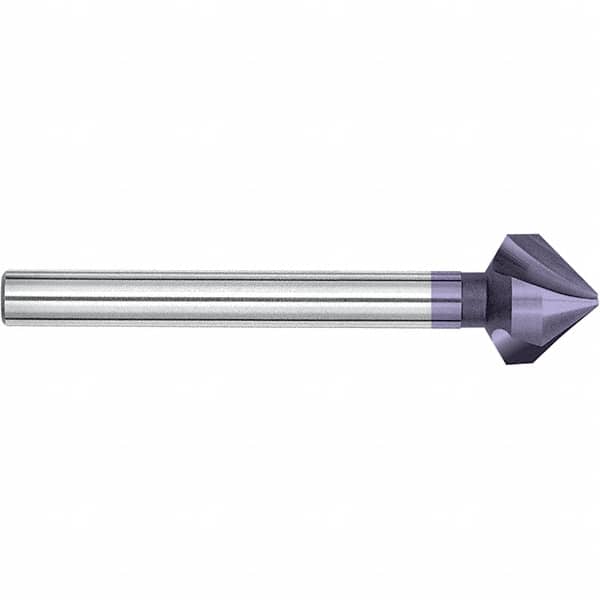

Magafor - 6.3mm Head Diam, 15/64" Shank Diam, 90° Cobalt Countersink - 3-5/16" OAL, Single End, Straight Shank, Right Hand Cut
Item #: 42771428
Brand: Magafor
Model #: 84493306300
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 6.30 |
| Head Diameter (Decimal Inch) | 0.2480 |
| Included Angle | 90 |
| Countersink Material | Cobalt |
| Minimum Cutting Diameter (Inch) | 3/64 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Shank Diameter (Inch) | 15/64 |
| Maximum Cutting Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 3-5/16 |
| Maximum Hole Diameter (Decimal Inch) | 0.2480 |
| End Type | Single |
| Shank Type | Straight |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 0.2480 |
