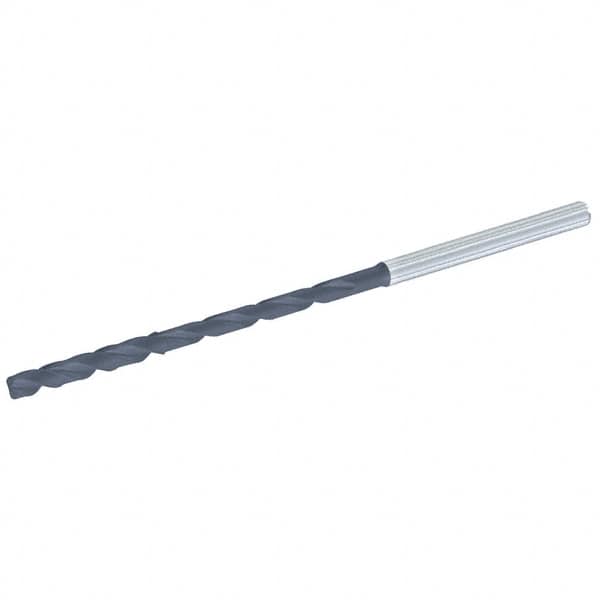

Extra Length Drill Bit: 0.2813″ Dia, 135 °, Solid Carbide - AlCrN;TiSiN Finish, 5.315″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B271-HPG
Item #: 42703702
Brand: Kennametal
Model #: 5506083
Product Specifications
| Overall Length (mm) | 181.00 |
| Flute Length (mm) | 135.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiSiN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B271-HPG |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | +0.000 to -0.015 mm; +0.0000 to -0.0006 in |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.2813 |
| Drill Point Length (mm) | 1.30 |
| Drill Point Length (Decimal Inch) | 0.0512 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute Length (Decimal Inch) | 5.3150 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 4.6457 |
| Maximum Drilling Depth (mm) | 118.00 |
| Material Grade | Fine Grain |
| Specification Designation | DIN |
