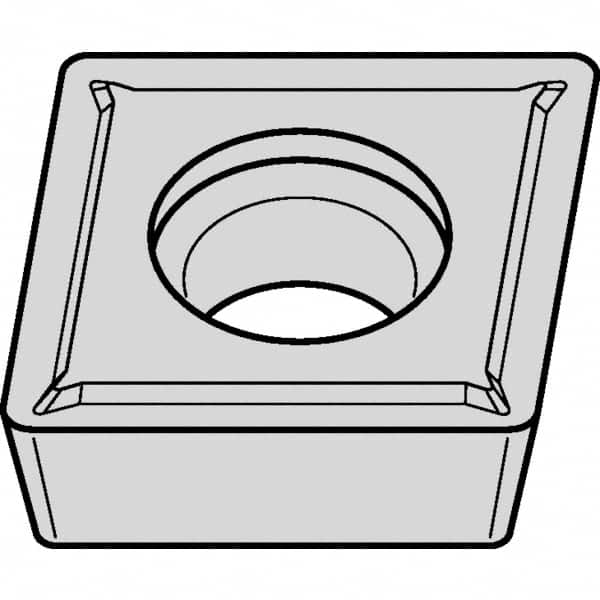

Kennametal - CPMT32.52 LF Grade KCP25B Carbide Turning Insert - TiCN/Al2O3/TiOCN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 42700765
Brand: Kennametal
Model #: 5413186
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCP25B |
| Coating | TiCN/Al2O3/TiOCN |
| Chip Breaker | LF |
| Insert Length (Decimal Inch) | 0.3810 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CPMT32.52 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 2.29 |
| Maximum Depth of Cut (Decimal Inch) | 0.0900 |
| Insert Holding Method | Screw |
| Shape | Diamond |
