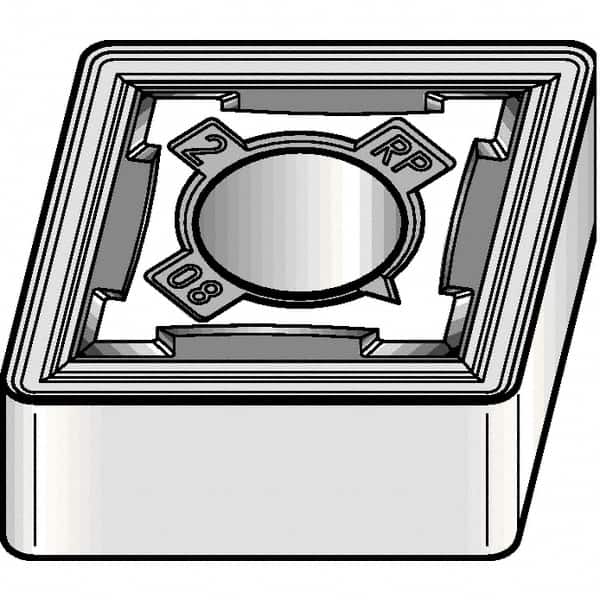

Kennametal - CNMG543 RP Grade KCP10B Carbide Turning Insert - 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 42700716
Brand: Kennametal
Model #: 5413180
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 543 |
| Material | Carbide |
| Length (mm) | 16.12 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KCP10B |
| Chip Breaker | RP |
| Insert Length (Decimal Inch) | 0.6350 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | CNMG160612RP |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Series | Kenloc |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
