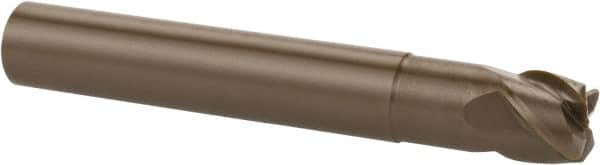

Kennametal - 1/4", 4 Flute, Single End, Ceramic, 0.031" Corner Radius End Mill - 2" OAL, 40° Helix, Right Hand Flute, 3/16" LOC, Right Hand Cut, 1/2" Extended Reach
Item #: 42696989
Brand: Kennametal
Model #: 5352352
Exact Tooling IR#: 04
Features and Benefits
Ceramic can be used for cutting at high speed and machining high-strength nickel-based alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number of Flutes | 4 |
| Material | Ceramic |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 3/16 |
| Length of Cut (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 40.00 |
| Reach Length (Inch) | 1/2 |
| Reach Length (Decimal Inch) | 0.5000 |
| Neck Diameter (Decimal Inch) | 0.2400 |
| Single or Double End | Single |
| Centercutting | No |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | -0.0079/-0.0015 |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00031 |
| Extended Reach | Yes |
| Series/List | EADE |
