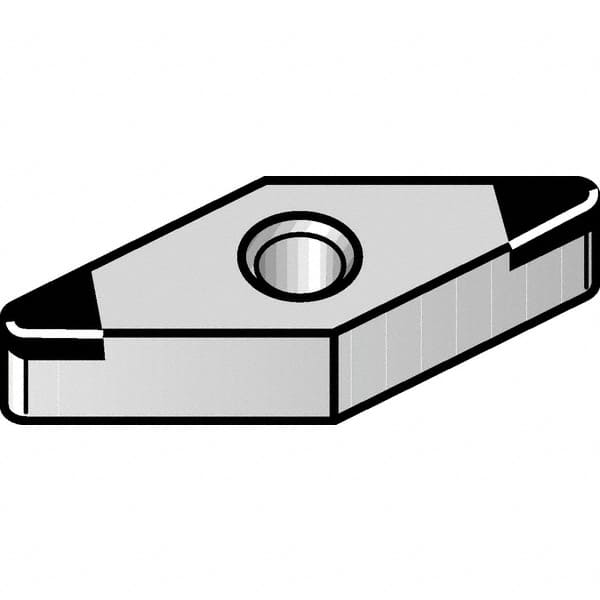

Kennametal - VNGM333 CB1 Grade KBH20 PCBN Turning Insert - 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 42696062
Brand: Kennametal
Model #: 5348583
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VNGM |
| Insert Size | 333 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KBH20 |
| Chip Breaker | CB1 |
| ISO Number | VNGM160412S01325MTCB1 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | H |
| Secondary Workpiece Material | None |
| Included Angle | 35 |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
