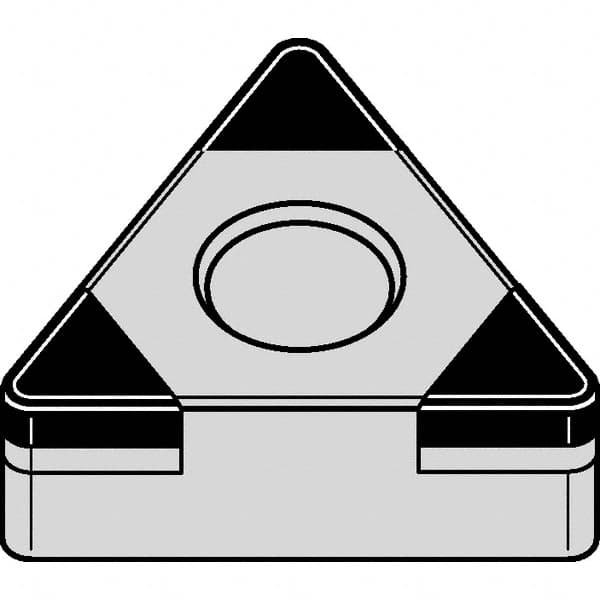

Kennametal - TNGA332 MT Grade KBH20 PCBN Turning Insert - Nano-Composite Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 42695569
Brand: Kennametal
Model #: 5330862
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TNGA |
| Insert Size | 332 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KBH20 |
| Coating | Nano-Composite |
| Chip Breaker | MT |
| Insert Length (Decimal Inch) | 0.6500 |
| ISO Number | TNGA160408S01015MT |
| Relief Angle | 0 |
| Primary Workpiece Material | H |
| Secondary Workpiece Material | None |
| Included Angle | 60 |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
