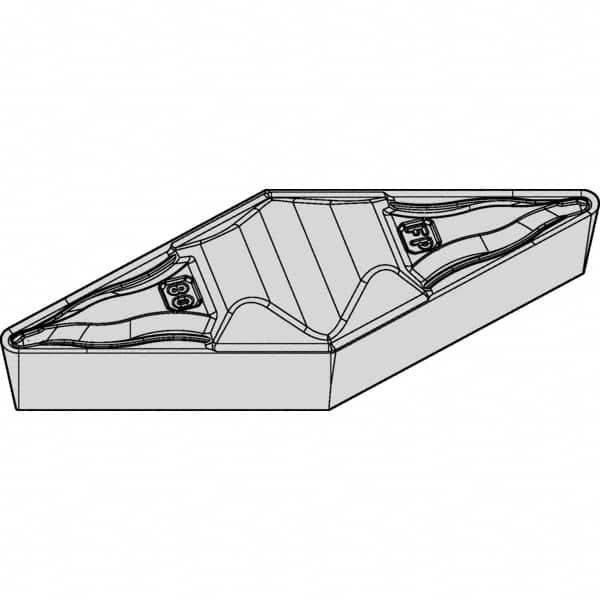

Kennametal - VCMR331 FP Grade KCU25 Carbide Turning Insert - AlTiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 42694430
Brand: Kennametal
Model #: 5324928
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCMR |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Material Grade | C2/C6 |
| Chip Breaker | FP |
| Insert Length (Decimal Inch) | 0.6540 |
| ISO Number | VCMR160404FP |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | None |
| Included Angle | 35 |
| Series | Top Notch |
| Maximum Depth of Cut (mm) | 1.52 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Insert Holding Method | Clamp |
| Shape | Diamond |
