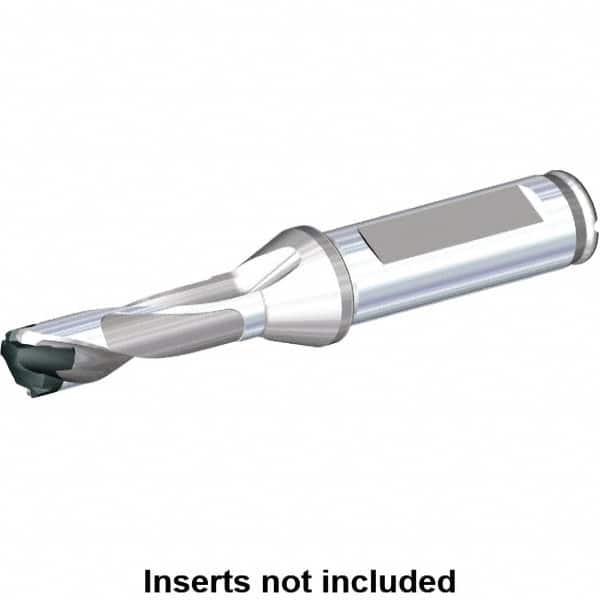

Kennametal - 10.02 to 10.49mm Diam, 3xD, 31.5mm Max Depth, 15.88mm Shank Diam, 1.784" Flute, 98.81mm OAL, Replaceable Tip Drill - J Seat Size, KTIP Toolholder, Series KenTIP
Item #: 42693432
Brand: Kennametal
Model #: 5307646
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 10.02 |
| Minimum Drill Diameter (Decimal Inch) | 0.3946 |
| Maximum Drill Diameter (mm) | 10.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4130 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.2400 |
| Maximum Drill Depth (mm) | 31.50 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | J |
| Toolholder Style | KTIP |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.0680 |
| Flute Length (Decimal Inch) | 1.7840 |
| Overall Length (mm) | 98.81 |
| Overall Length (Decimal Inch) | 3.8900 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 1.8900 |
