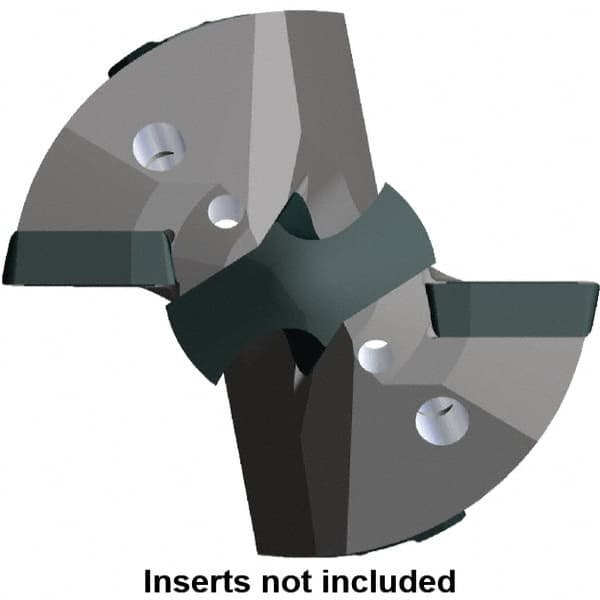

Kennametal - Series KSEM Plus, Head Connection FDS40, 41.28mm Max Diam Pilot Insert Drill Head - 18mm Pilot Drill Diam, 30mm Head Length
Item #: 42691311
Brand: Kennametal
Model #: 5116043
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS40 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 41.28 |
| Maximum Drill Diameter (Decimal Inch) | 1.6250 |
| Pilot Drill Diameter (mm) | 18.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.7087 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1810 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Head Length to Pilot Tip (Decimal Inch) | 1.3370 |
| Head Length to Pilot Tip (mm) | 33.96 |
| Includes | Insert screw; Wrench |
