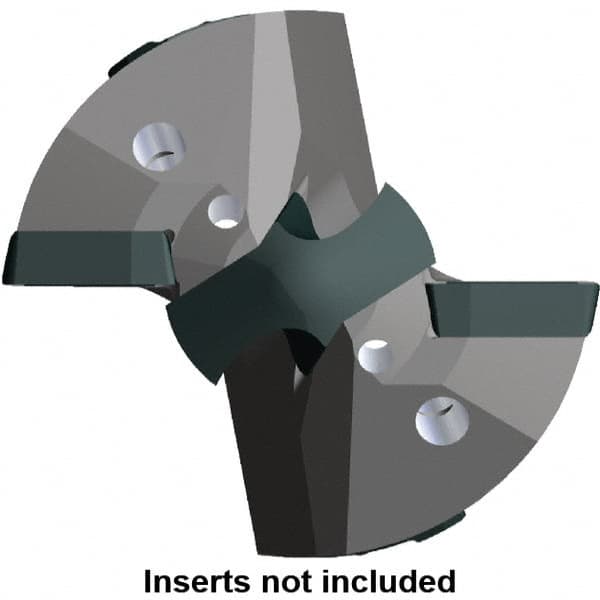

Kennametal - Series KSEM Plus, Head Connection FDS32, 34.93mm Max Diam Pilot Insert Drill Head - 18mm Pilot Drill Diam, 25mm Head Length
Item #: 42691246
Brand: Kennametal
Model #: 5116030
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS32 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 34.93 |
| Maximum Drill Diameter (Decimal Inch) | 1.3752 |
| Pilot Drill Diameter (mm) | 18.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.7087 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Head Length to Pilot Tip (Decimal Inch) | 1.1339 |
| Head Length to Pilot Tip (mm) | 28.80 |
| Includes | Insert screw; Wrench |
