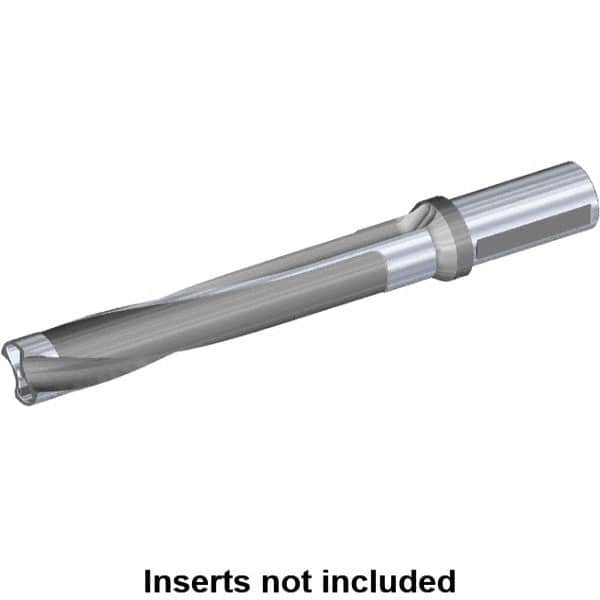

Kennametal - Series KSEM Plus, Head Connection FDS32, 3xD, 1-1/2" Shank Diam, Drill Body - 85.09mm Drill Body Length to Flange, SSF Toolholder, 9-1/2" OAL, 105mm Drill Body Length, 3.35" Flute Length, Weldon Flat Shank, Through Coolant
Item #: 42687863
Brand: Kennametal
Model #: 3952192
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS32 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Drill Body Length to Flange (mm) | 85.09 |
| Drill Body Length to Flange (Decimal Inch) | 3.3500 |
| Toolholder Style | SSF |
| Overall Length (Decimal Inch) | 9.5000 |
| Gage Length (mm) | 105.00 |
| Gage Length (Decimal Inch) | 4.1339 |
| Flute Length (Decimal Inch) | 3.3500 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 3.7500 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 2 |
| Includes | Clamping Screws; Pipe Plug |
