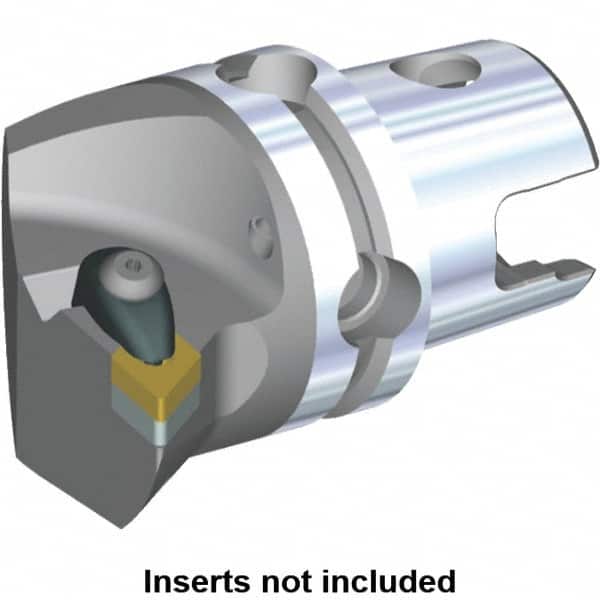

Kennametal - Right Hand Cut, Size KM40, DN.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 45mm Head Length, Through Coolant, Series Kenclamp
Item #: 42687756
Brand: Kennametal
Model #: 3950172
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40 |
| Series Name | Kenclamp |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 45.00 |
| Head Length/Projection (Decimal Inch) | 1.7717 |
| Insert Style | DN.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 86.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.3858 |
| Complete Insert Compatibility | DN..442; DN..150608 |
