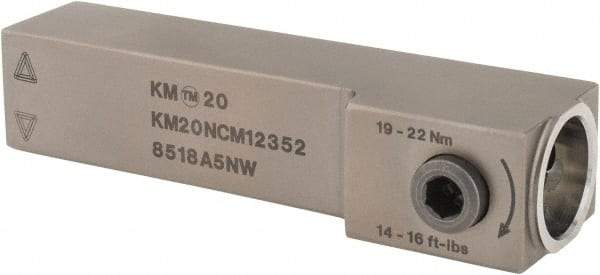

Kennametal - Neutral Cut, KM20 Modular Connection, Square Shank Lathe Modular Clamping Unit - 19mm Square Shank Length, 19mm Square Shank Width, 3-1/2" OAL, Series NCM Square Shank
Item #: 42685545
Brand: Kennametal
Model #: 3482940
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Square Shank |
| Series Code | NCM Square Shank |
| Connection Size | KM20 |
| Cutting Direction | Neutral |
| Square Shank Length (mm) | 19.00 |
| Square Shank Length (Decimal Inch) | 0.7480 |
| Square Shank Width (mm) | 19.00 |
| Square Shank Width (Decimal Inch) | 0.7480 |
| Through Coolant | No |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
