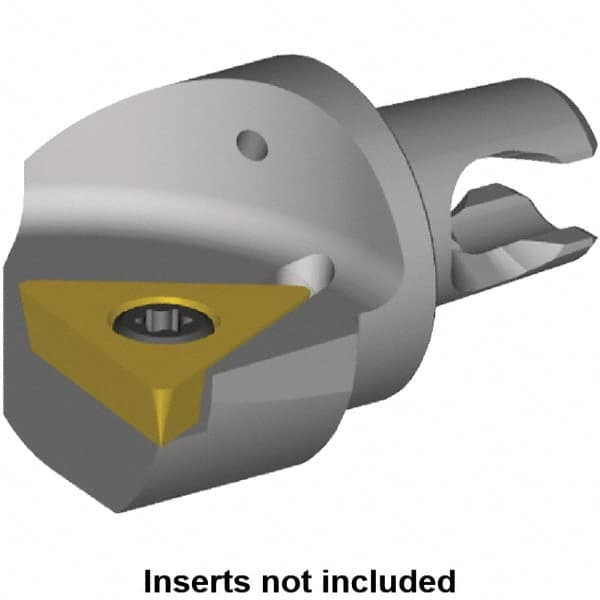

Kennametal - Left Hand Cut, Size KM2016, TP.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 13mm Ctr to Cutting Edge, 20mm Head Length, Through Coolant, Series KM Micro
Item #: 42685388
Brand: Kennametal
Model #: 3016754
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM2016 |
| Series Name | KM Micro |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 20.00 |
| Head Length/Projection (Decimal Inch) | 0.7874 |
| Insert Style | TP.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | TP..16T308; TP..3252 |
