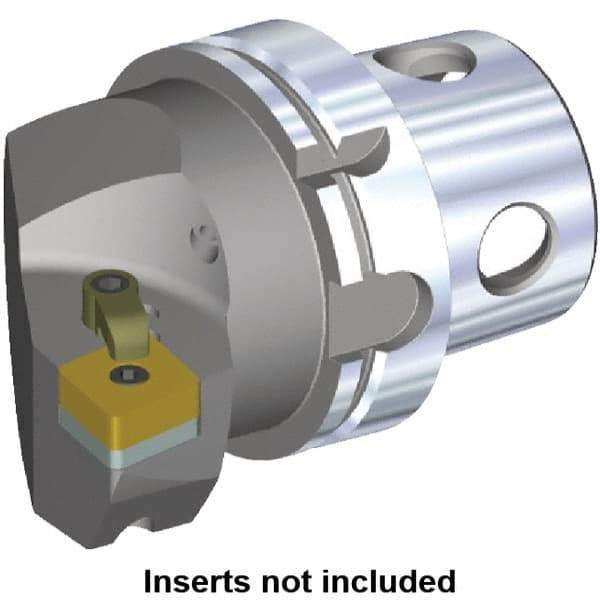

Kennametal - Left Hand Cut, Size KM4X100, CN.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 63mm Ctr to Cutting Edge, 100mm Head Length, Through Coolant
Item #: 42683953
Brand: Kennametal
Model #: 5337809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM4X100 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 100.00 |
| Head Length/Projection (Decimal Inch) | 3.9370 |
| Insert Style | CN.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 63.00 |
| Center to Cutting Edge (Decimal Inch) | 2.4803 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 120.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.7244 |
| Complete Insert Compatibility | CN..866; CN..250924 |
