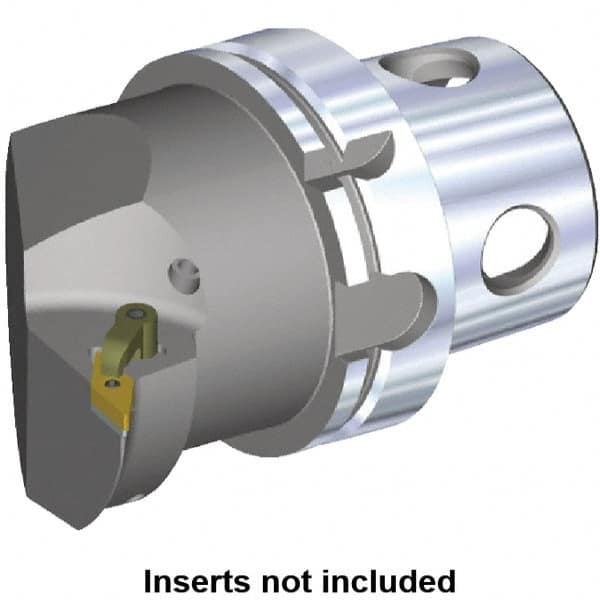

Kennametal - Left Hand Cut, Size KM4X100, VN.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 63mm Ctr to Cutting Edge, 100mm Head Length, Through Coolant
Item #: 42683888
Brand: Kennametal
Model #: 5337731
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM4X100 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 100.00 |
| Head Length/Projection (Decimal Inch) | 3.9370 |
| Insert Style | VN.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 63.00 |
| Center to Cutting Edge (Decimal Inch) | 2.4803 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 120.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.7244 |
| Complete Insert Compatibility | VN..332; VN..160408 |
