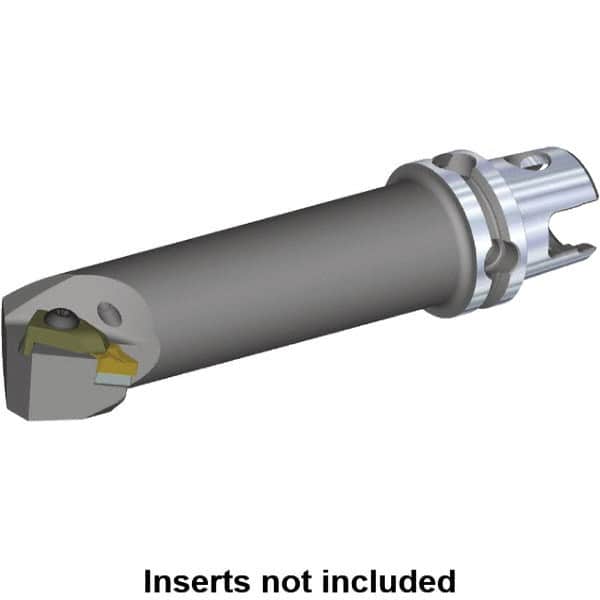

Kennametal - KNGX.., NP.. 132F Insert, 177.8mm Head Length, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size KM50, Through Coolant, Series Top Notch
Item #: 42682054
Brand: Kennametal
Model #: 3964156
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50 |
| Series Name | Top Notch |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | KNGX..; NP.. 132F |
| Head Length/Projection (mm) | 177.80 |
| Head Length/Projection (Decimal Inch) | 7.0000 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Minimum Hole Diameter (mm) | 50.04 |
| Minimum Hole Diameter (Decimal Inch) | 1.9700 |
| Complete Insert Compatibility | KNGX 150408R20; NPR132F |
| Maximum Depth of Cut (mm) | 119.99 |
| Maximum Depth of Cut (Decimal Inch) | 4.7240 |
