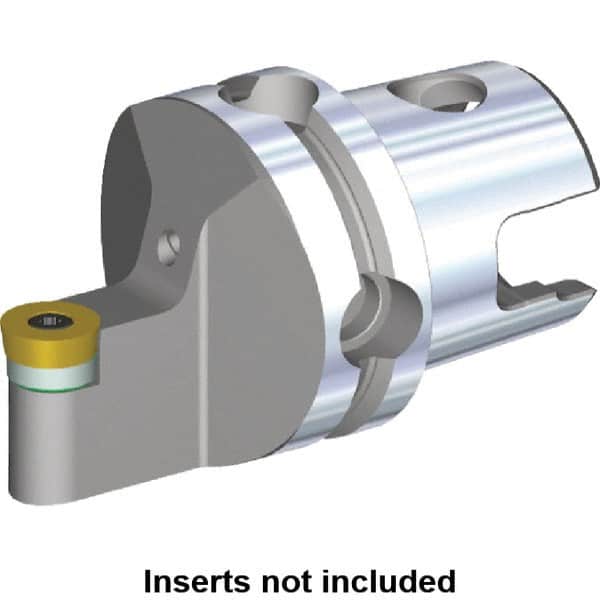

Kennametal - Neutral Cut, Size KM40, RC.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 4mm Ctr to Cutting Edge, 40mm Head Length, Through Coolant, Series S-Clamping
Item #: 42681650
Brand: Kennametal
Model #: 3960016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40 |
| Series Name | S-Clamping |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 40.00 |
| Head Length/Projection (Decimal Inch) | 1.5748 |
| Insert Style | RC.. |
| Center to Cutting Edge (mm) | 4.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 16.00 |
| Maximum Hole Depth (Decimal Inch) | 0.6299 |
| Complete Insert Compatibility | RC..0803M0 |
