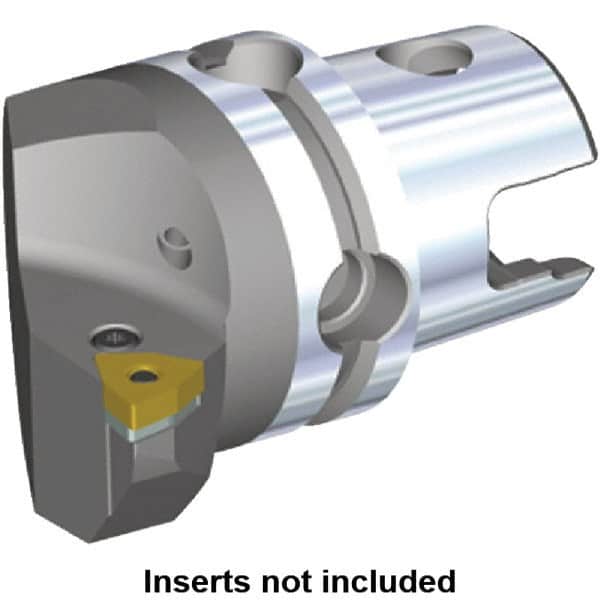

Kennametal - Left Hand Cut, Size KM40, WN.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 40mm Head Length, Through Coolant, Series Kenlever
Item #: 42680249
Brand: Kennametal
Model #: 3950787
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40 |
| Series Name | Kenlever |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 40.00 |
| Head Length/Projection (Decimal Inch) | 1.5748 |
| Insert Style | WN.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Lever Lock |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | WN..432; WN..080408 |
