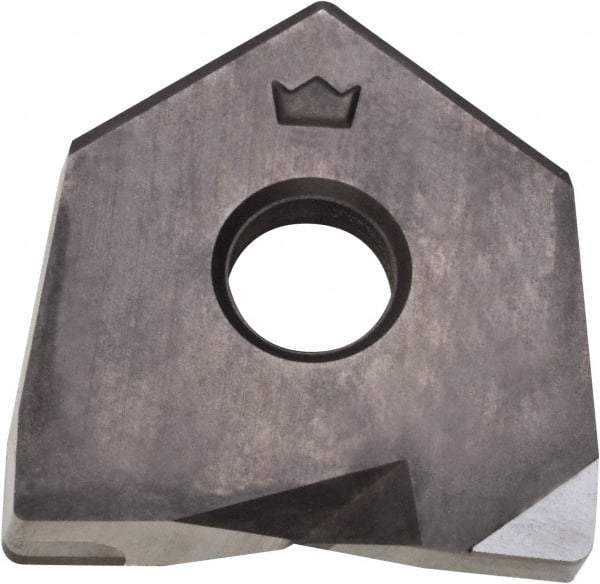

Millstar - BDS0625 Grade CM10 PCD Milling Insert - Uncoated, 1/8" Thick, 5/8" Inscribed Circle, 1/16" Corner Radius
Item #: 42589515
Brand: Millstar
Model #: BDS0625N04PCD
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | BDS |
| Insert Size | 0625 |
| Material | PCD |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | CM10 |
| Coating | Uncoated |
| Width (Inch) | 5/8 |
| Width (Decimal Inch) | 0.6250 |
| Length (Decimal Inch) | 0.4570 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Rake | Neutral |
| Coating Process | PCD |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Cutting Edge Style | Honed |
