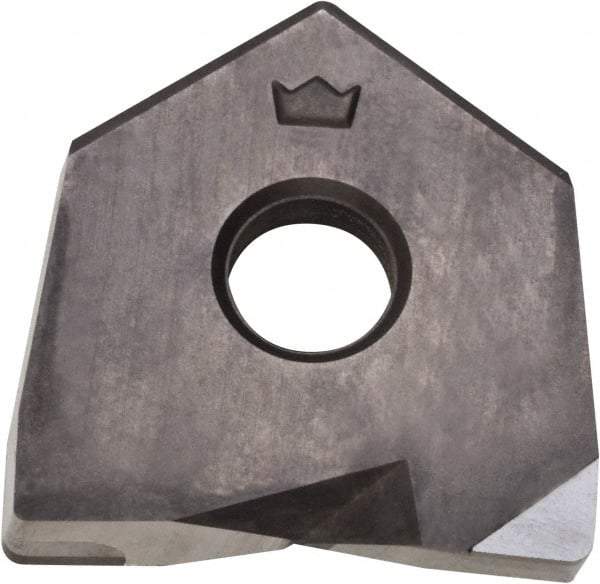

Millstar - BDS20 Grade CM10 PCD Milling Insert - Uncoated, 1/8" Thick, 20mm Inscribed Circle, 1.6mm Corner Radius
Item #: 42589333
Brand: Millstar
Model #: BDS20N1PCD
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | BDS |
| Insert Size | 20 |
| Material | PCD |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | CM10 |
| Coating | Uncoated |
| Width (mm) | 20.00 |
| Length (mm) | 13.35 |
| Inscribed Circle (mm) | 20.00 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 1.60 |
| Rake | Neutral |
| Coating Process | PCD |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Cutting Edge Style | Honed |
