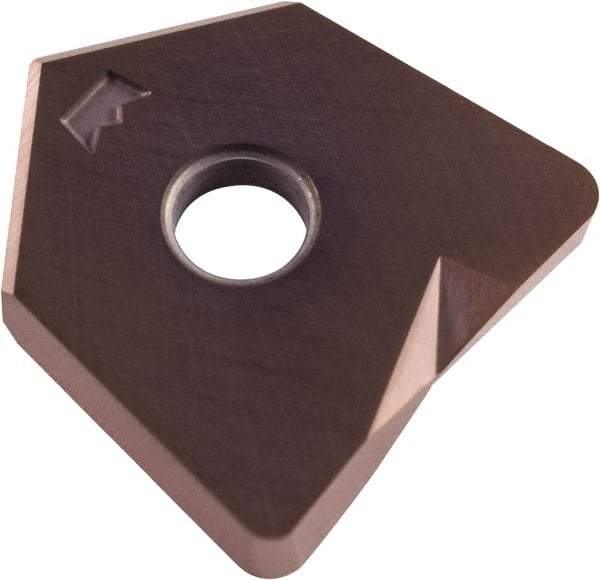

Millstar - BD32 Grade CM10 Carbide Milling Insert - HSN Finish, 0.2" Thick, 32mm Inscribed Circle, 1mm Corner Radius
Item #: 42589275
Brand: Millstar
Model #: BD32N1HSN
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BD |
| Insert Size | 32 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | CM10 |
| Coating | HSN |
| Width (mm) | 32.00 |
| Length (mm) | 23.35 |
| Inscribed Circle (mm) | 32.00 |
| Thickness (Decimal Inch) | 0.2000 |
| Corner Radius (mm) | 1.00 |
| Rake | Neutral |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Cutting Edge Style | Honed |
