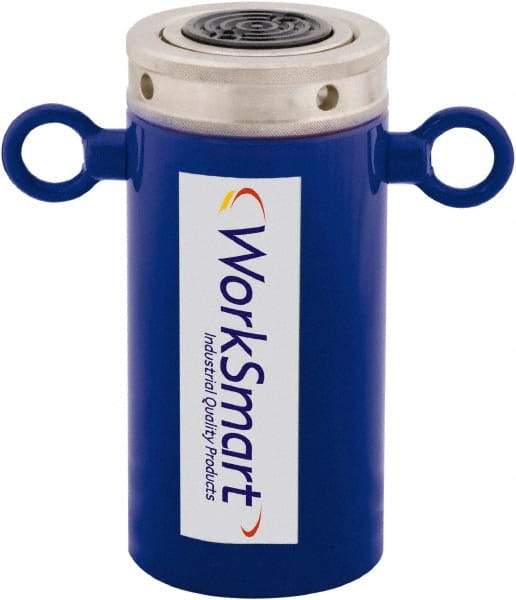

Value Collection - 55 Ton, 5.91" Stroke, 64.9 Cu In Oil Capacity, Portable Hydraulic Lock Nut Cylinder - 10.99 Sq In Effective Area, 10.4" Lowered Ht., 16.3" Max Ht., 3.7" Cyl Bore Diam, 10,000 Max psi
Item #: 42367169
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Lock Nut |
| Load Capacity (Ton) | 55 |
| Piston Stroke (Decimal Inch) | 5.91 |
| Cylinder Bore Diameter (Decimal Inch) | 3.70 |
| Lowered Height | 10.40 |
| Oil Capacity | 64.90 |
| Effective Area | 10.99 |
| Maximum Height (Decimal Inch) | 16.30 |
| Outside Diameter (Inch) | 4-29/32 |
| Base To Inlet Port (Inch) | 1-7/64 |
| Saddle Diameter (Inch) | 2.80 |
| Plunger Internal Thread Size | None |
| Maximum Pressure (psi) | 10000 |
