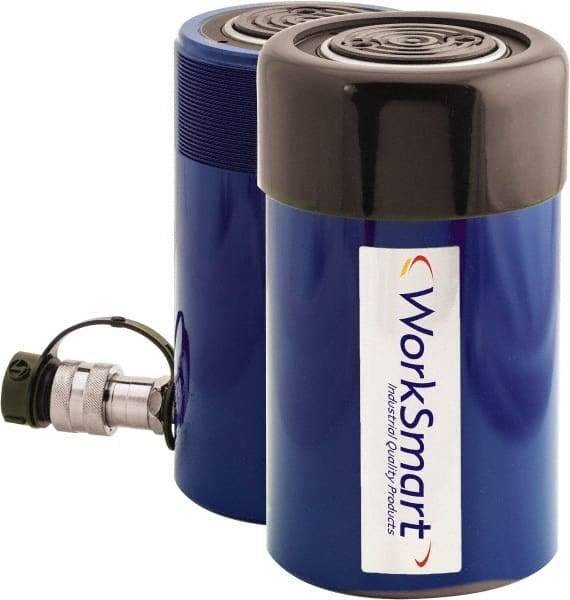

Value Collection - 55 Ton, 4.06" Stroke, 44.57 Cu In Oil Capacity, Portable Hydraulic Single Acting Cylinder - 10.98 Sq In Effective Area, 8.94" Lowered Ht., 13" Max Ht., 3.74" Cyl Bore Diam, 3.15" Plunger Rod Diam, 10,000 Max psi
Item #: 42367102
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 55 |
| Piston Stroke (Decimal Inch) | 4.06 |
| Cylinder Bore Diameter (Decimal Inch) | 3.74 |
| Lowered Height | 8.94 |
| Oil Capacity | 44.57 |
| Effective Area | 10.98 |
| Maximum Height (Decimal Inch) | 13.00 |
| Outside Diameter (Inch) | 5 |
| Plunger Diameter | 3.15 |
| Base To Inlet Port (Inch) | 1-7/32 |
| Saddle Diameter (Inch) | 2.76 |
| Plunger Internal Thread Size | None |
| Collar Thread | 5 - 12 |
| Collar Thread Length (Inch) | 2.17 |
| Base Mounting Holes Bolt Circle (Inch) | 3-3/4 |
| Two Base Mounting Holes Thread Size | 1/2-13 |
| Base Mounting Hole Thread Depth (Inch) | 0.75 |
| Maximum Pressure (psi) | 10000 |
