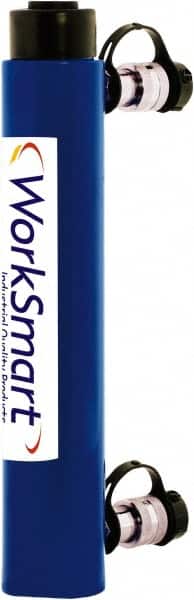

Value Collection - 10 Ton, 10.04" Stroke, 22.41 Cu In Oil Capacity, Portable Hydraulic Double Acting Cylinder - 2.24 Sq In Effective Area, 16.12" Lowered Ht., 26.19" Max Ht., 1.69" Cyl Bore Diam, 1.38" Plunger Rod Diam, 10,000 Max psi
Item #: 42367011
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Load Capacity (Ton) | 10 |
| Piston Stroke (Decimal Inch) | 10.04 |
| Cylinder Bore Diameter (Decimal Inch) | 1.69 |
| Lowered Height | 16.12 |
| Oil Capacity | 22.41 |
| Effective Area | 2.24 |
| Maximum Height (Decimal Inch) | 26.19 |
| Outside Diameter (Inch) | 2-7/8 |
| Plunger Diameter | 1.38 |
| Base To Inlet Port (Inch) | 1-27/64 |
| Saddle Diameter (Inch) | 1.38 |
| Plunger Internal Thread Size | 1 - 8 |
| Plunger Internal Thread Length | 0.98 |
| Collar Thread | 2-1/4 - 14 |
| Collar Thread Length (Inch) | 1.02 |
| Base Mounting Holes Bolt Circle (Inch) | 1-5/16 |
| Two Base Mounting Holes Thread Size | 5/16 - 18 |
| Base Mounting Hole Thread Depth (Inch) | 0.60 |
| Maximum Pressure (psi) | 10000 |
