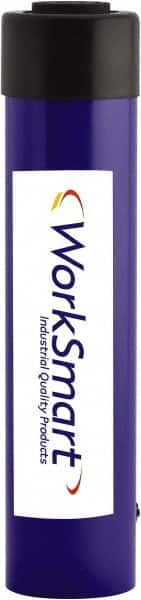

Value Collection - 25 Ton, 10.12" Stroke, 52.12 Cu In Oil Capacity, Portable Hydraulic Single Acting Cylinder - 5.15 Sq In Effective Area, 14.72" Lowered Ht., 24.84" Max Ht., 2.56" Cyl Bore Diam, 2.24" Plunger Rod Diam, 10,000 Max psi
Item #: 42366708
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 25 |
| Piston Stroke (Decimal Inch) | 10.12 |
| Cylinder Bore Diameter (Decimal Inch) | 2.56 |
| Lowered Height | 14.72 |
| Oil Capacity | 52.12 |
| Effective Area | 5.15 |
| Maximum Height (Decimal Inch) | 24.84 |
| Outside Diameter (Inch) | 3-11/32 |
| Plunger Diameter | 2.24 |
| Base To Inlet Port (Inch) | 1 |
| Saddle Diameter (Inch) | 1.97 |
| Plunger Internal Thread Size | 1-1/2 - 16 |
| Plunger Internal Thread Length | 1.19 |
| Collar Thread | 3-5/16 - 12 |
| Collar Thread Length (Inch) | 1.93 |
| Base Mounting Holes Bolt Circle (Inch) | 2-5/16 |
| Two Base Mounting Holes Thread Size | 1/2-13 |
| Base Mounting Hole Thread Depth (Inch) | 0.75 |
| Maximum Pressure (psi) | 10000 |
