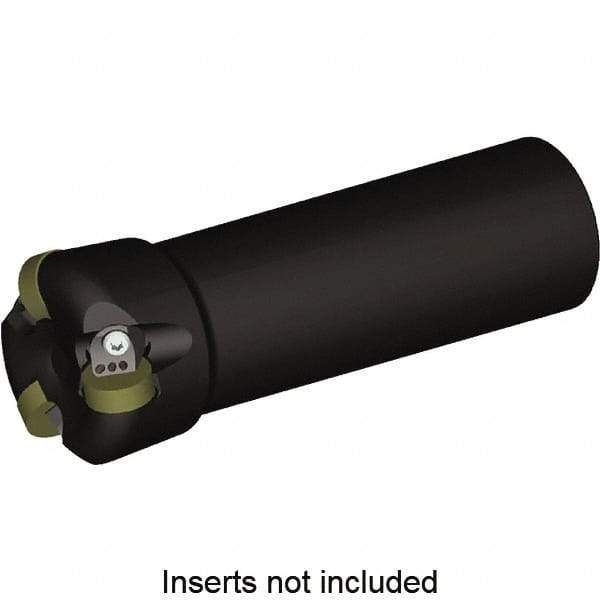

Kennametal - 1.075" Cutting Diam, 32mm Shank Diam, Straight Shank Indexable Copy End Mill - 3 Inserts, RNGN120400 Insert, KCRA40Z03A32RN12 Toolholder, Steel
Item #: 42321836
Brand: Kennametal
Model #: 5704053
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Number of Cutter Inserts | 3 |
| Insert Style | RNGN120400 |
| Toolholder Style | KCRA40Z03A32RN12 |
| Series | KCRA |
| Overall Length (mm) | 110.00 |
| Insert Holding Method | Wedge Clamp |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Head Length (mm) | 23.97 |
| Head Length (Decimal Inch) | 0.9440 |
| Shank Length (mm) | 86.03 |
| Shank Length (Decimal Inch) | 3.3870 |
| Maximum RPM | 27700 |
