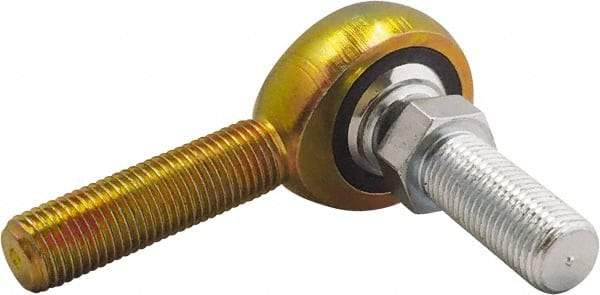

Made in USA - 3/8" ID, 1" Max OD, 4,012 Lb Max Static Cap, Male Spherical Rod End with Stud - 3/8-24 RH, 1-1/4" Shank Length, Carbon Steel with Plastic Raceway - Benchmark Tooling

Made in USA - 3/8" ID, 1" Max OD, 4,012 Lb Max Static Cap, Male Spherical Rod End with Stud - 3/8-24 RH, 1-1/4" Shank Length, Carbon Steel with Plastic Raceway


Item #: 42307470
Brand: Made in USA
Exact Tooling IR#: 04

Product Specifications
Inside Diameter (Decimal Inch) 0.3750
Inside Diameter (Inch) 3/8
Style Male Rod End w/ Stud
Maximum Outside Diameter (Decimal Inch) 1.0000
Maximum Outside Diameter (Inch) 1
Maximum Static Load Capacity (Pounds) 4012.0
Width (Inch) 1/2
Width (Decimal Inch) 0.5000
Thread Size 3/8-24
Material Carbon Steel
Raceway Material Plastic
Shank Length (Decimal Inch) 1.2500
Thread Direction Right Hand
$10.28
