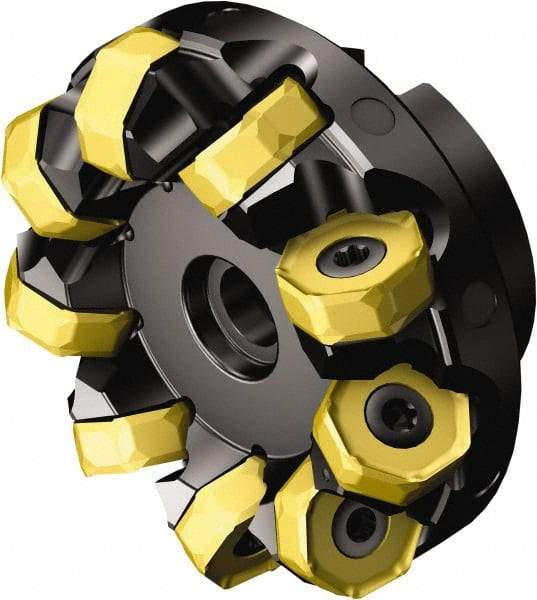

Sandvik Coromant - 250mm Cut Diam, 1-7/8" Arbor Hole, 5.2mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 16 Inserts, 745R-2109 Insert, Right Hand Cut, 16 Flutes, Through Coolant, Series Coromill 745
Item #: 42251579
Brand: Sandvik Coromant
Model #: 6702285
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 250.00 |
| Arbor Hole Diameter (Inch) | 1-7/8 |
| Arbor Hole Diameter (Decimal Inch) | 1.8750 |
| Lead Angle | 42 |
| Overall Height (Decimal Inch) | 2.4800 |
| Overall Height (mm) | 62.99 |
| Insert Compatibility | 745R-2109 |
| Series | Coromill 745 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.20 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Number of Flutes | 16 |
| Hub Diameter (Decimal Inch) | 5.0394 |
| Hub Diameter (mm) | 128.00 |
| Maximum Body Diameter (Decimal Inch) | 10.3900 |
| Maximum RPM | 2998 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
