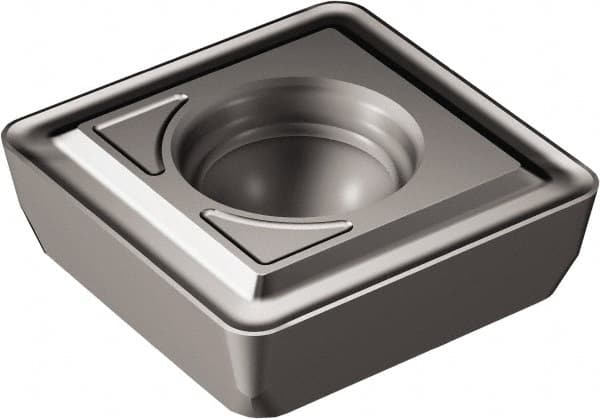

Sandvik Coromant - 88003P LM Grade H13A Carbide Indexable Drill Insert - Uncoated, Square, 6mm Inscribed Circle
Item #: 42233395
Brand: Sandvik Coromant
Model #: 5765671
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 03P |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Thickness (mm) | 2.60 |
| Thickness (Decimal Inch) | 0.1024 |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Shape | Square |
| Width (Decimal Inch) | 0.2362 |
| Width (mm) | 6.00 |
| Length (mm) | 6.00 |
| Length (Decimal Inch) | 0.2362 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Coating | Uncoated |
| Coating Process | Uncoated |
| Chipbreaker | LM |
