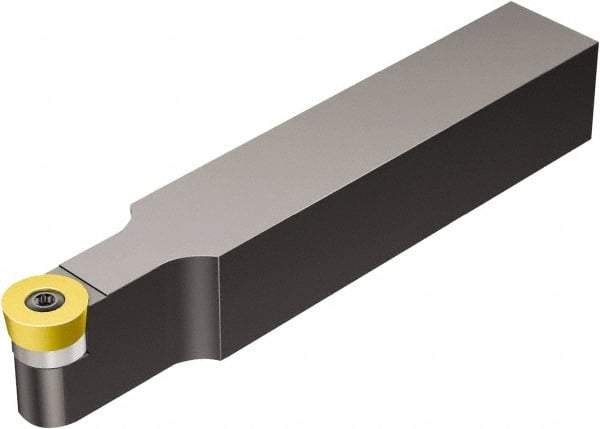

Sandvik Coromant - SRDC, Neutral Cut, 32mm Shank Height x 32mm Shank Width, Neutral Rake Indexable Turning Toolholder - 170mm OAL, RCMT 20 06 M0 Insert Compatibility, Series CoroTurn 107
Item #: 42194043
Brand: Sandvik Coromant
Model #: 5751157
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SRDC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | RCMT 20 06 M0 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 26.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0236 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Toolholder Material | Steel |
